Athena Wall-Mounted Builder

Description

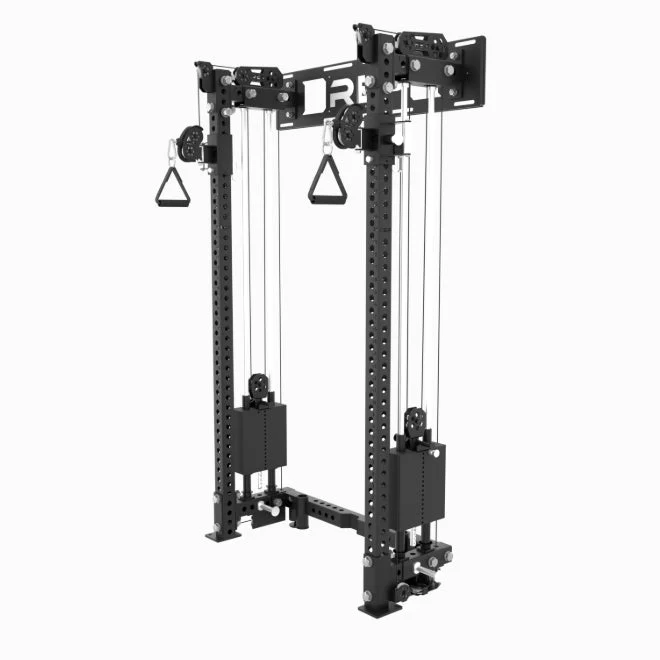

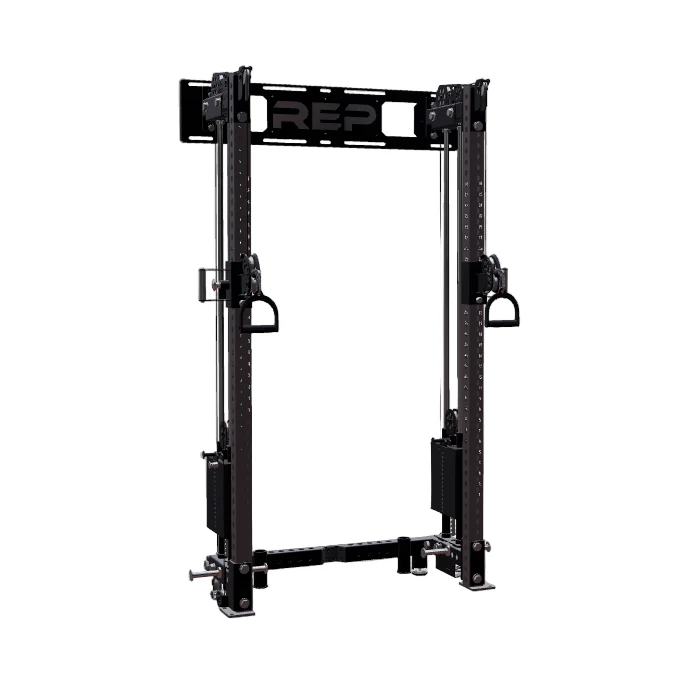

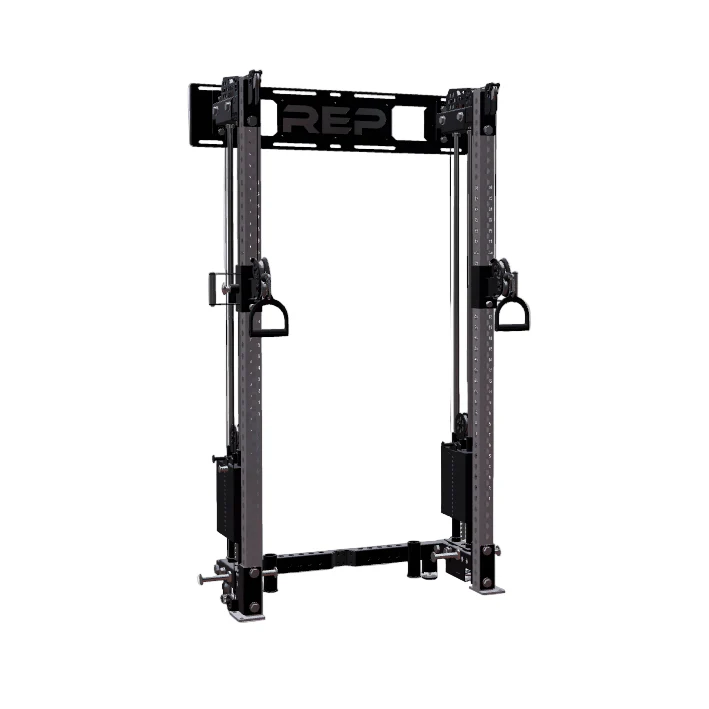

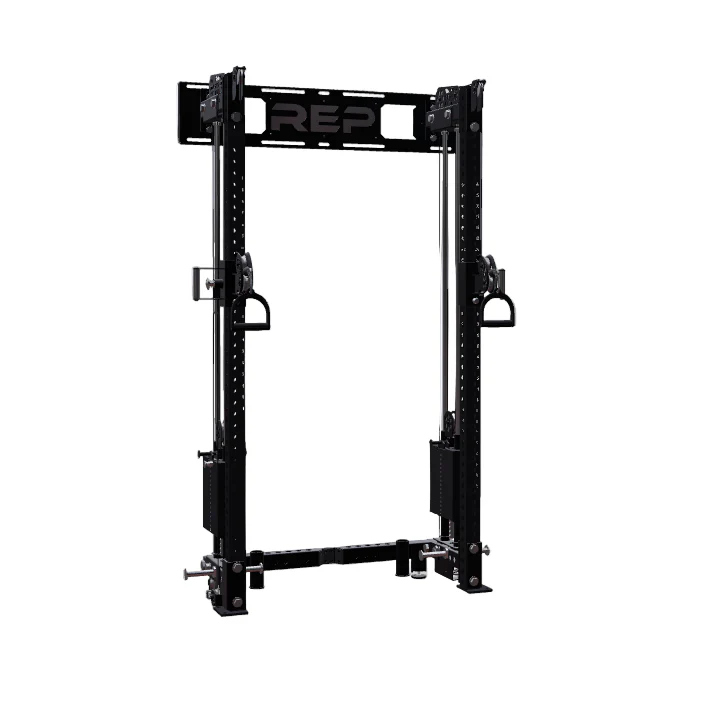

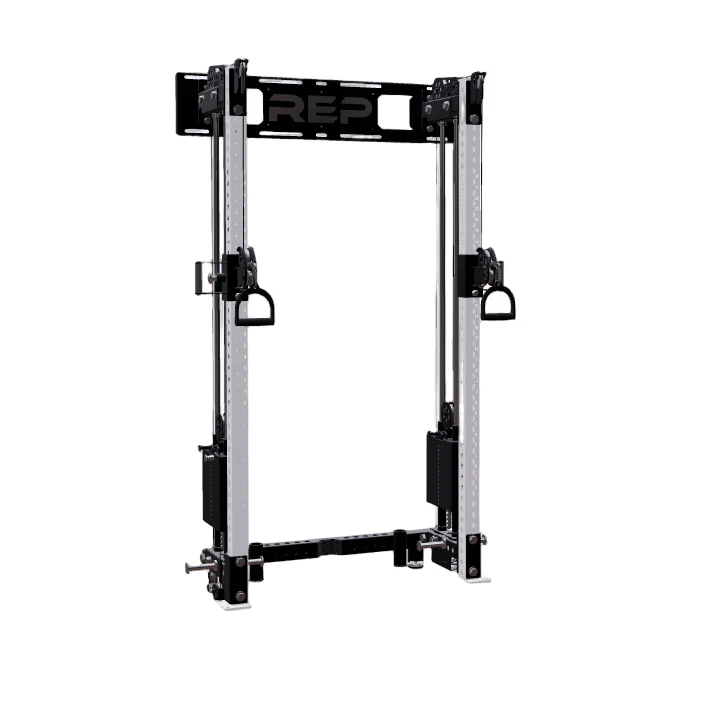

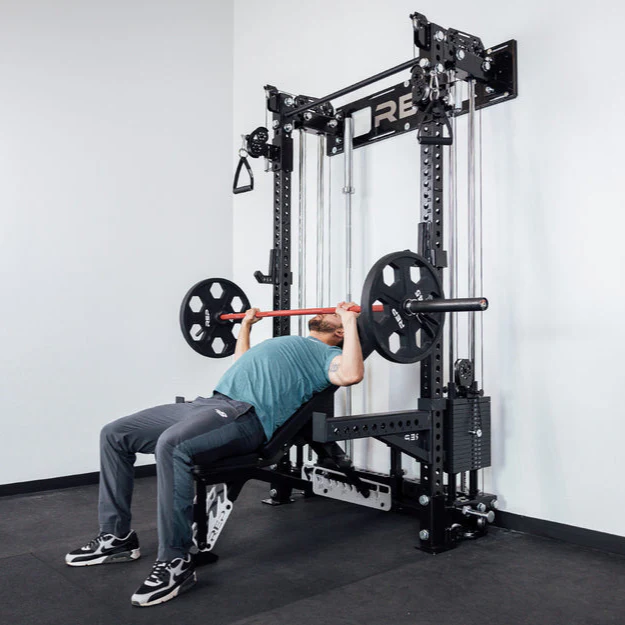

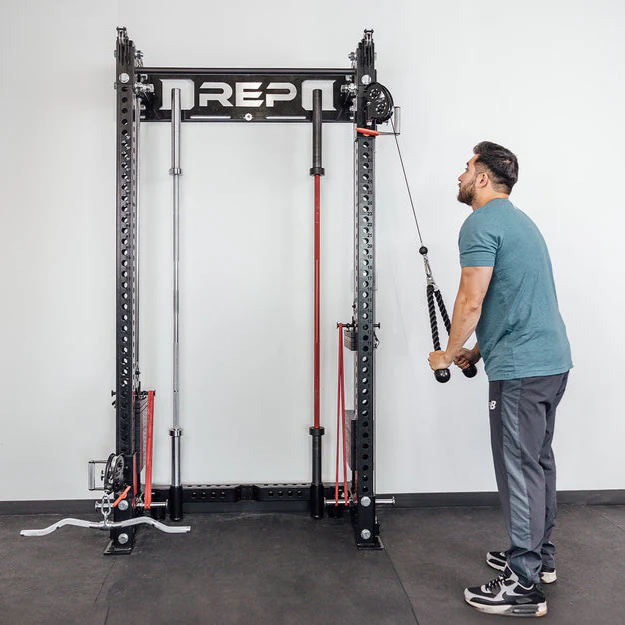

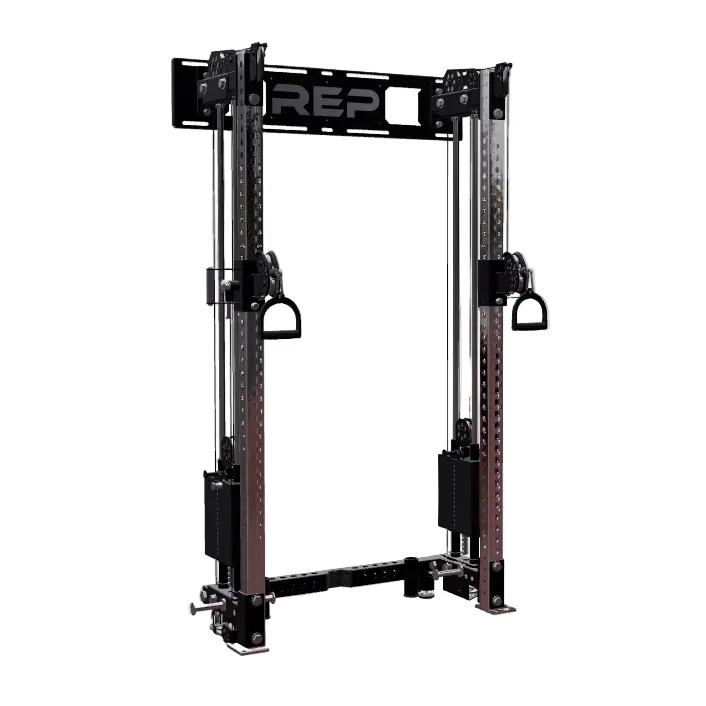

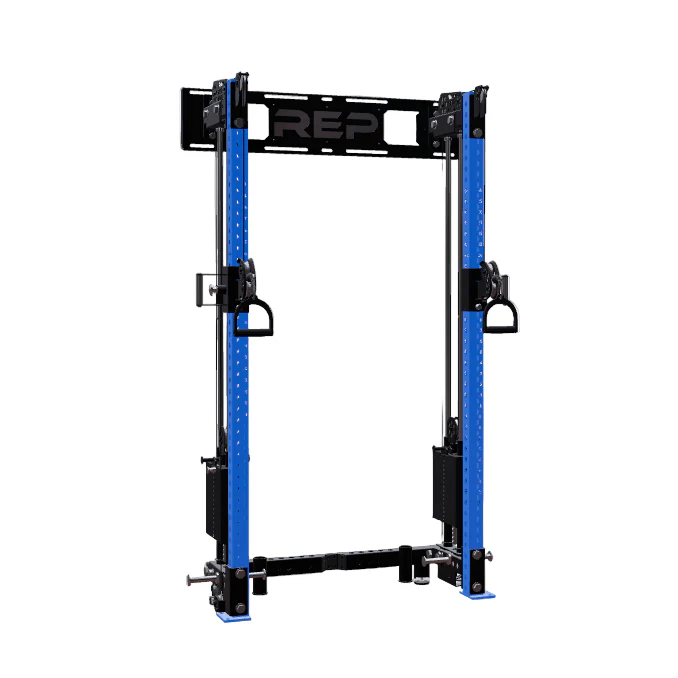

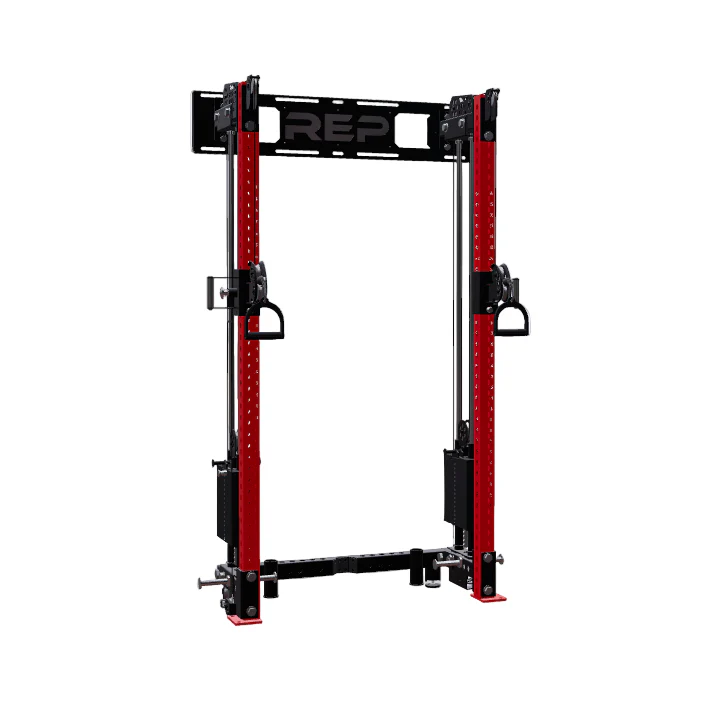

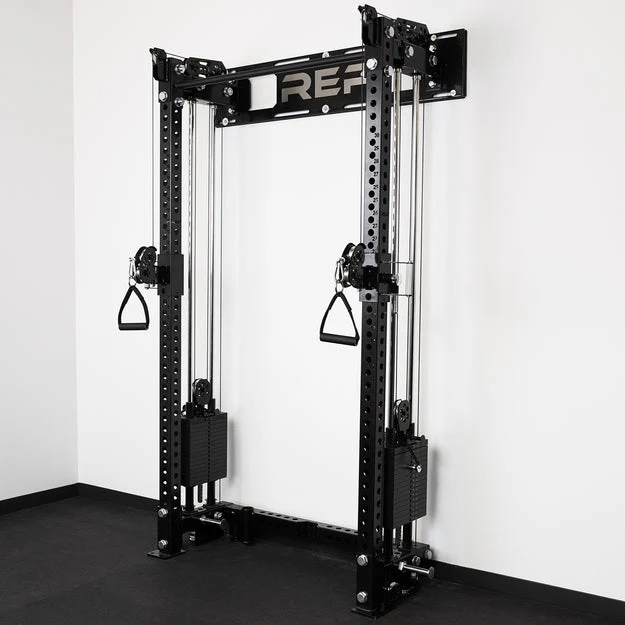

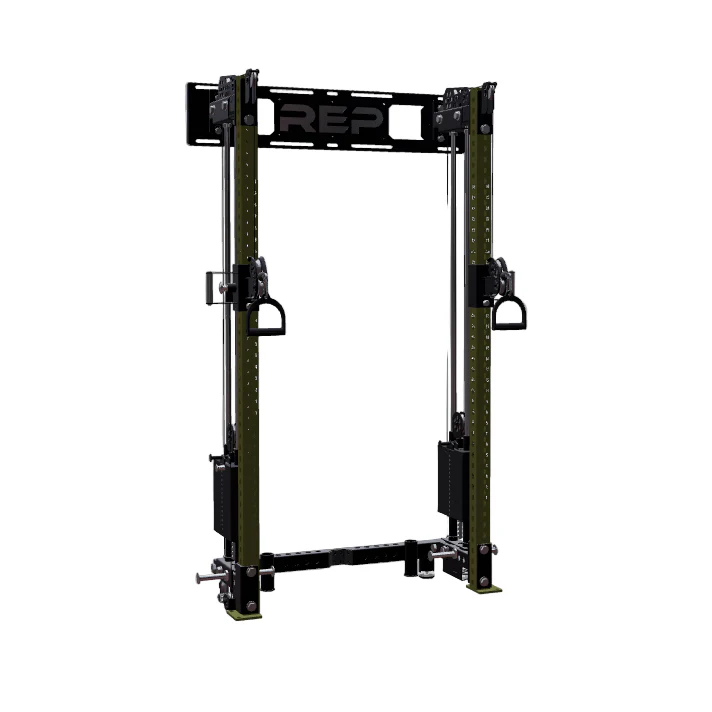

The wall-mounted Athena® side-mount functional trainer is a compact cable attachment designed for the 5000 Series wall-mount rack. It delivers the versatility of a functional trainer and power rack in one, without taking up the space of stand-alone units. With a 2:1 pulley ratio, each 170lb stack (upgradeable to 220lbs) provides smooth, consistent resistance. Hot-rolled steel plates, a magnetic pin, and integrated band pegs let you easily adjust weight or add resistance up to 540lbs.

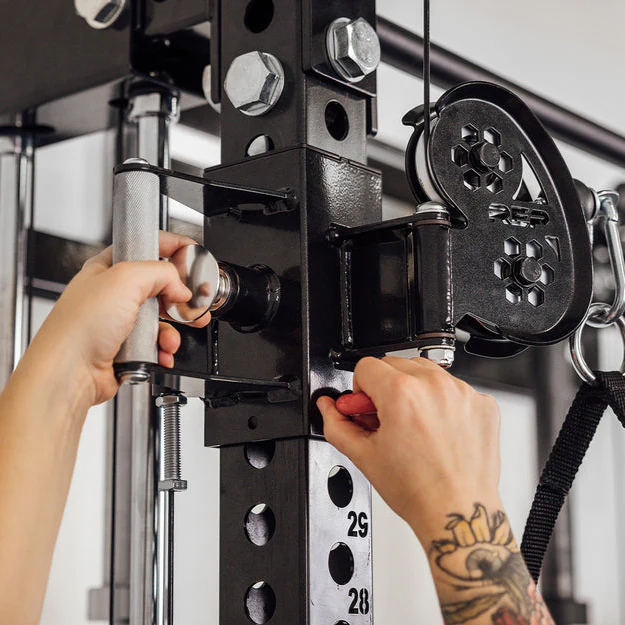

The patent-pending trolley adjusts to any height, with plastic liners for rack protection, a knurled handle, and an oversized pop-pin for one-handed use. The aluminum pulleys swivel 180° for natural movement inside or outside the rack. Each unit includes a urethane D-handle and is compatible with a wide range of cable attachments.

Features

• SPACE SAVING: Provides the functionality of a functional trainer machine in a low-profile rack attachment without the bulk of a freestanding rack or machine.
• PATENT-PENDING DESIGN: The light and smooth trolleys with a knurled handle and oversized pop-pin are easy to move with one hand, but strong enough to handle heavy weight. They're lined with a special plastic to protect your uprights.

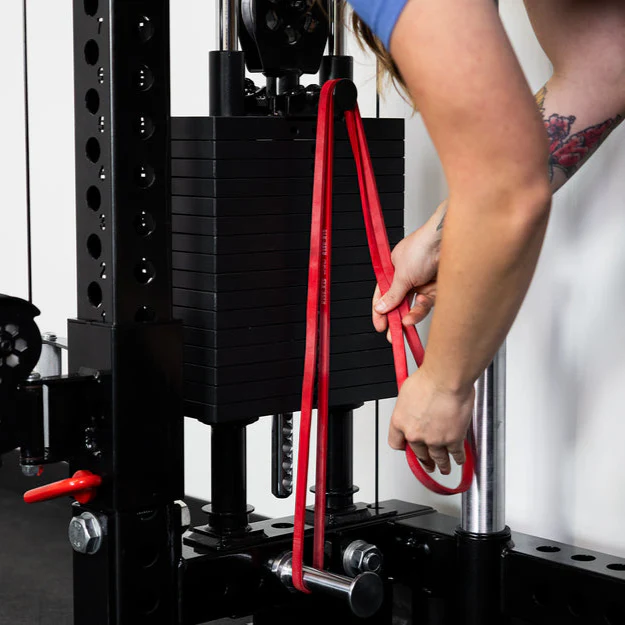

• INTEGRATED BAND PEGS: The integrated band pegs on the base and headplate provide the option to create added resistance with bands up to a max weight capacity of 540lbs.
• ATTACHMENT VERSATILITY: Includes a urethane D Handle attachment (one per unit) and is compatible with a wide assortment of cable attachments.

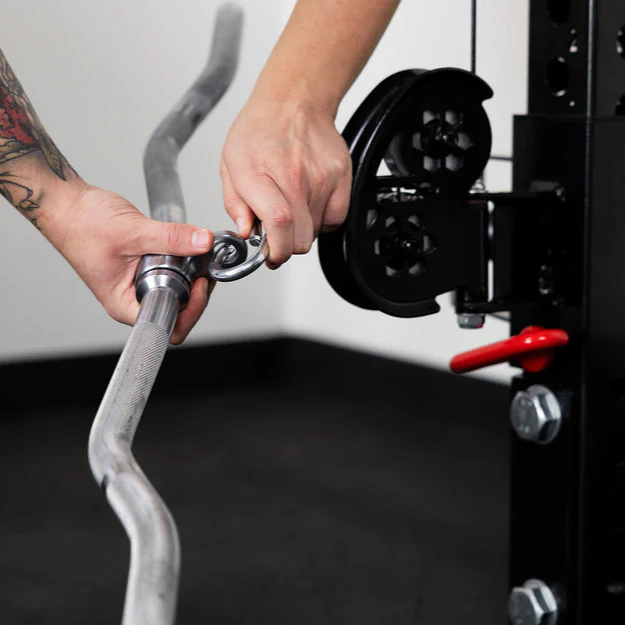

• QUALITY PULLEYS AND CABLES: This attachment features high-quality cables made from galvanized wire with a raw steel core and strong aluminum pulleys. The front pulleys have a 180-degree swivel for versatility working outside the rack.
• HEAVY WEIGHT STACKS: The 170lb weight stacks are made from hot-rolled steel and operate at a 2:1 ratio (20lbs feels like 10lbs), ideal for functional training. The stacks can be upgraded to 220lbs.

Specifications

• Upright Height Options: 80" or 93"
• Total Height: 80": 81.8" & 93": 94.8"
• Width: 58.2"
• Depth: 27.6"
• Hole Size: 1”
• Hole Spacing: 2”
• Weight Stack: 170lbs Per Side (Upgradeable to 220lbs)
• Pulley Ratio: 2:1
• Minimum Usable Weight: 10lbs (Per Side)
• Cable Weight Capacity: 540lbs (Per Side)
• Cable Travel: 93” Rack: 106” Or 80” Rack: 82.8”
• Weight Plate Tolerance: 3%
• Highest Trolley Positioning: 93: 81" (top), 74" (bottom) & 80: 68" (top), 61" (bottom)
• Highest J-cup Positioning: 93: 68" & 80: 59"

Warranty

• Lifetime Structural Warranty
